Cara pakai : masukkan sim card GSM, pasang antenanya, hubungkan ke pesawat rumah.
HARGA : Rp. 950.000,-Overview

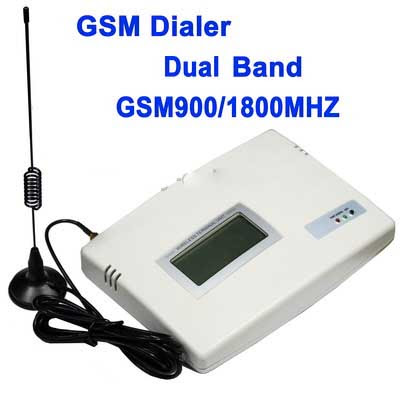

1) Providing 900/1800 GSM connectivity。
2) Simple to install/easy to maintain
3) Allow PIN code entering and reciprocal phone-card lock
4) Provide optimized circuit directly connecting the exchange device
5) For extensions
6) LCD with back screen
7) Polarity reversal signal for metering
8) 3.5dBi gain antenna
9) Compatible to PABX
10) Suitable for call termination of ISP
11) Incoming call reminder, time display
Specifications:
1) Air interface standard: GSM 900/1800 MHz Phase 2+
2) Sensitivity: -104dB
3) Peak power consumption: 2W
4)Operating environment requirements: Temperature: 0℃ - +40℃; Relative humidity: 45% - 90%
5) Connectors: SMA antenna connector (TNC optional)
6) Atmospheric pressure: 86~106Pka
7) Power consumption: static≤25 mA, emission≤500 mA
8) Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
9) Power supply: DC12V
10) Product dimension: L192x W138 x H40mm
