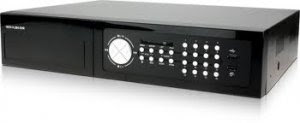

DVR Standalone Avtech 16 Channel KPD 759 Made Taiwan

DVR Standalone Avtech 16 Channel KPD 759 Made Taiwan - DVR Standalone merk AVTECH 759 support sampai 16 camera cctv dan bisa di akses melalui Internet, HP BB dan HP Iphone.



HARGA : Rp.3.900.000,-

Specifications:


Video System
NTSC / PAL ( auto detection)
Video Compression
H.264
Video Input ( composite video signal 1 Vp-p 75? BNC)
16 channels
Video Output ( composite video signal 1 Vp-p 75? BNC)
Main monitor output
Audio Input/ Output
4 audio inputs, 1 audio output ( Mono)
Maximum Recording Rate ( CIF)
325x288 with 400 FPS ( NTSC) / 752x576 with 100 FPS ( PAL)
Multilingual OSD
YES
Image Quality Setting
Best, High, Normal and Basic
Hard Disk Storage
Accommodates 2 SATA HDDs ( 1 HDD capacity up to 1TB)
SATA Interface
Built-in
Quick Search
Time / Motion / Alarm search mode
Recording Mode
Manual / Timer / Motion / Alarm / Remote
Refresh Rate
240 IPS for NTSC / 200 IPS for PAL
Multiplex Operation

Live display / record ( 8 channels) / playback ( simultaneously up to 4 channels) / backup / networkoperations
Remote Independent Operation
Fully remote independent operation
R.E.T.R. ( Remote Event Trigger Recording)
YES
Motion Detection Area
16 × 12 grids per camera for all channels
Motion Detection Sensitivity
One parameter with threesensitivity levels ( High / Normal / Low)
Pre-alarm Recording
YES ( 8 MB)
Backup Device
USB 2.0 flash drive, Network
USB Interface
Front panel * 1
Web Transmitting Compression Format
MPEG4
Ethernet
10/ 100 Base-T. Supports remote control and live view via Ethernet
Licensed software

“ Video Viewer” / Internet Explorer or Mozilla Firefox
Web Interface

Supports licensed software “ Video Viewer” / Internet Explorer & Mozilla Firefox web browsers / QuickTime ( 5 users access simultaneously)
* Operating System: Windows Vista / XP / 2000; Apple Mac
Network Protocol
TCP/ IP, PPPOE, DHCP and DDNS
IR Remote Control
YES ( IR receiver built-in)
PTZ Control
YES
Dwell Time ( Sequential Channel Switch)
Programmable with adjustable dwell time ( 3 / 5 / 10 / 15 seconds)
Alarm I/ O
16 inputs, 1 output
Picture Zoom
2X digital zoom ( Live & Playback)
Key Lock ( Password Protection)
YES
Video Loss Detection
YES
Camera Title
Supports up to 6 letters
Video Adjustable
Hue / Saturation / Contrast / Brightness
Date Display Format
YY/ MM/ DD, DD/ MM/ YY, MM/ DD/ YY, and Off
Daylight Saving
YES
Power Source ( ± 10% )
DC 19V
Power Consumption ( ± 10% )
? 64 W
Operating Temperature
10? ~ 40? ( 50? ~ 104? )
Dimensions ( mm) * *
432mmx326mmx90mm
System Recovery
System auto recovery after power failure
Optional Peripherals
Keyboard controller
